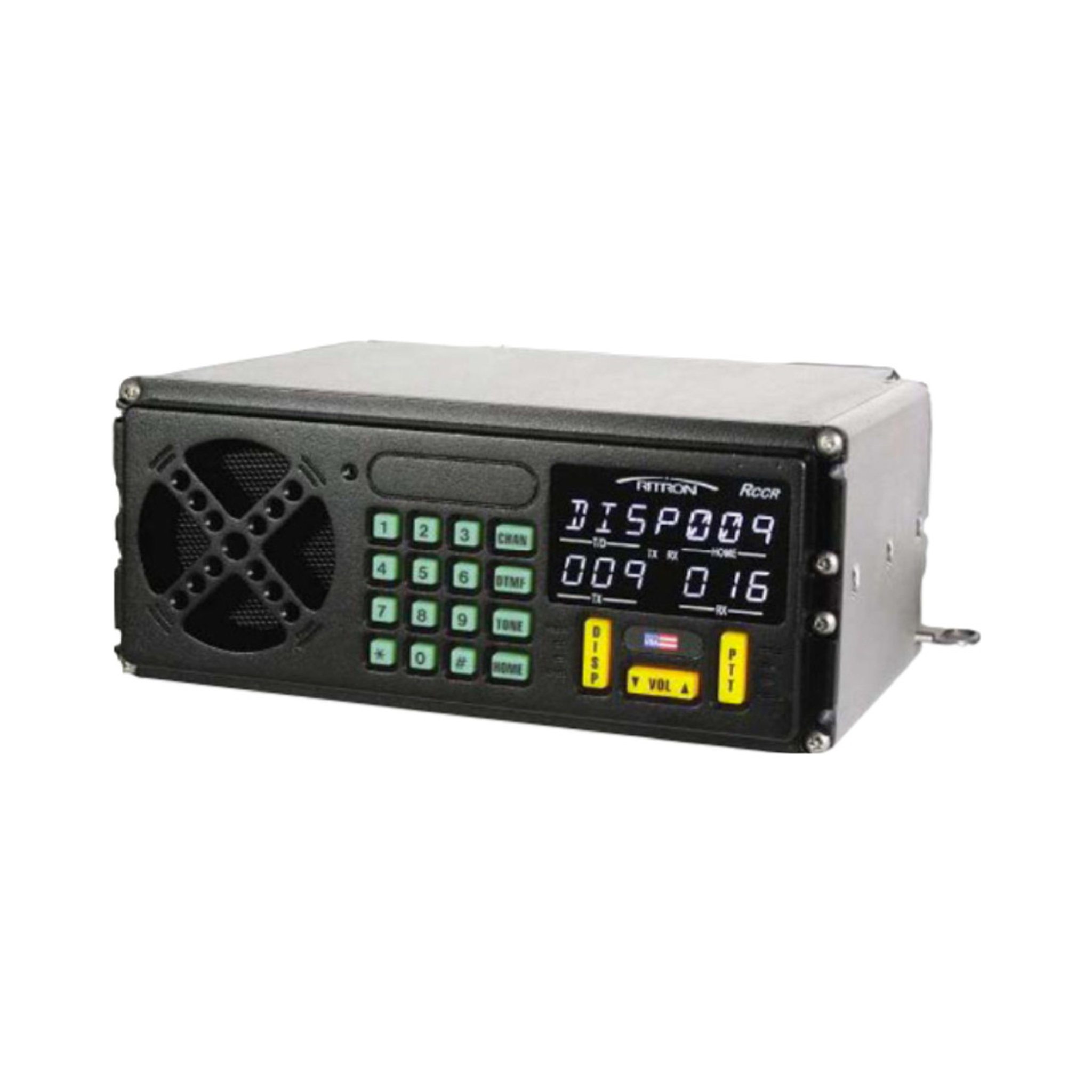

Ritron RCCR-151-NX

ONE PIECE VHF DIGTIAL (NXDN) CLEAN CAB RADIO

The Ritron RCCR-151-NX is a digital (NXDN) clean cab radio that uses a clean design optimized for the railroad environment. The Legacy model RCCR locomotive voice radio is designed using state-of-the-art RF technology to provide on-board voice communication for both freight and passenger railroad operations. The RCCR-151 comes in the 1-piece  remote head model. he legacy RCCR is capable of 25KHz (wideband - international only), 12.5KHz (narrowband) and 6.25kHz (very narrowband) NXDN Digital operation (when equipped with the NXDN add-on board).

The all-metal enclosure is made from heavy gauge, precision-machined aluminum for maximum durability. A large, bright, easy-to-read LED display allows for a wide viewing angle and ruggedness. Front panel push buttons are large and flush mounted to ensure correct entry and back-lit for low light operation. Special emphasis has been given to easy access and serviceability of all internal PCB's and related electronics.

RITRON RCCR-151 KEY FEATURES

• VHF (155-174MHz)
• 10-50 Watts
• Narrowband (12.5kHz)
• Basic analog radio model is “Upgradeable” to NXDNTM digital operation with optional Add-On PCB
• All-metal, rugged enclosure for maximum durability.
• Large, easy-to-read LED display with wide viewing angle, long viewing distance and ruggedness.
• Automatic dimming in low light environments.
• Front panel push buttons are large and flush mounted to ensure correct entry and backlit for low light operation.
• Large speaker provides loud, crisp, easy-to-understand audio.
• Oversized easy-to-grasp carrying handle allows for hassle-free radio transport.
• Easy access and serviceability of all internal PCBs and related electronics.
• Dual front-end design; narrow front-end with dual surface acoustic wave (SAW) filters forAAR channels and wider front-end for general VHF operation.
• Appropriate front-end is automatically selected for channel/frequency chosen.
• Tight RF specifications for urban environments. Frequency stability supports FCC 6.25 kHz requirements.
• Internal flash memory and program code externally upgradeable
• High VSWR Alert
• FCC Narrow Band Compliant. IC Canada Approved.

RITRON RCCR-151 WARRANTY

* 1-year manufacturer's warranty on this repeater.
