Digital Pull Force Tester HP-500 | 500N Capacity Wire Harness Terminal Tensile Tester | Portable Thrust Meter for Automotive & Electronics Testing | Perfect for Quality Control in Manufacturing & Engineering Labs

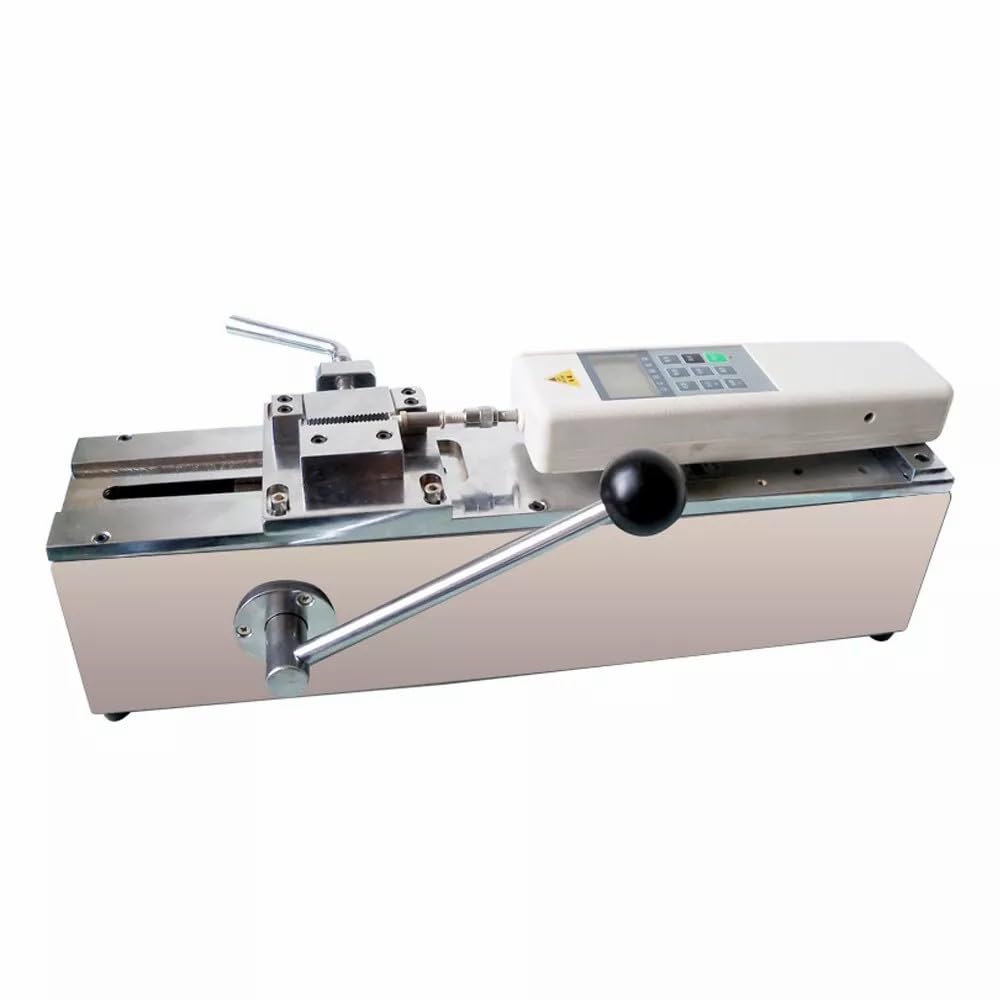

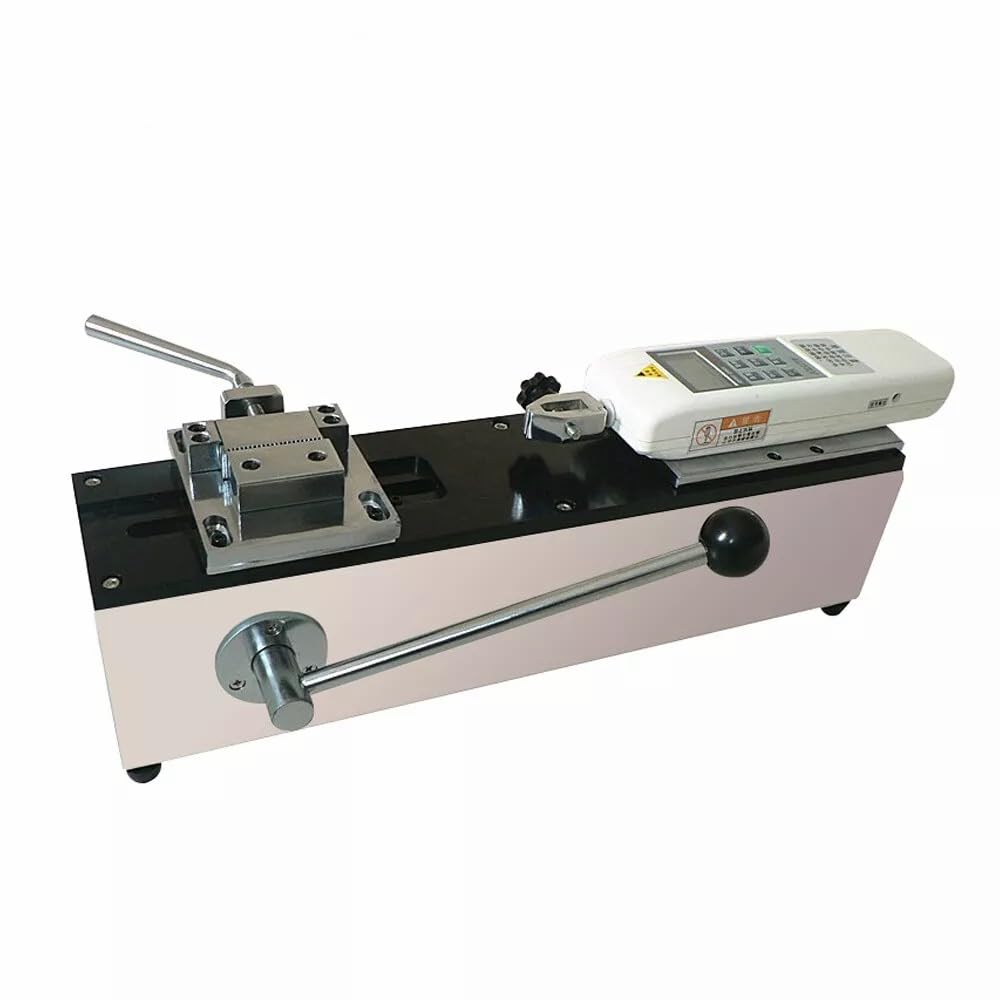

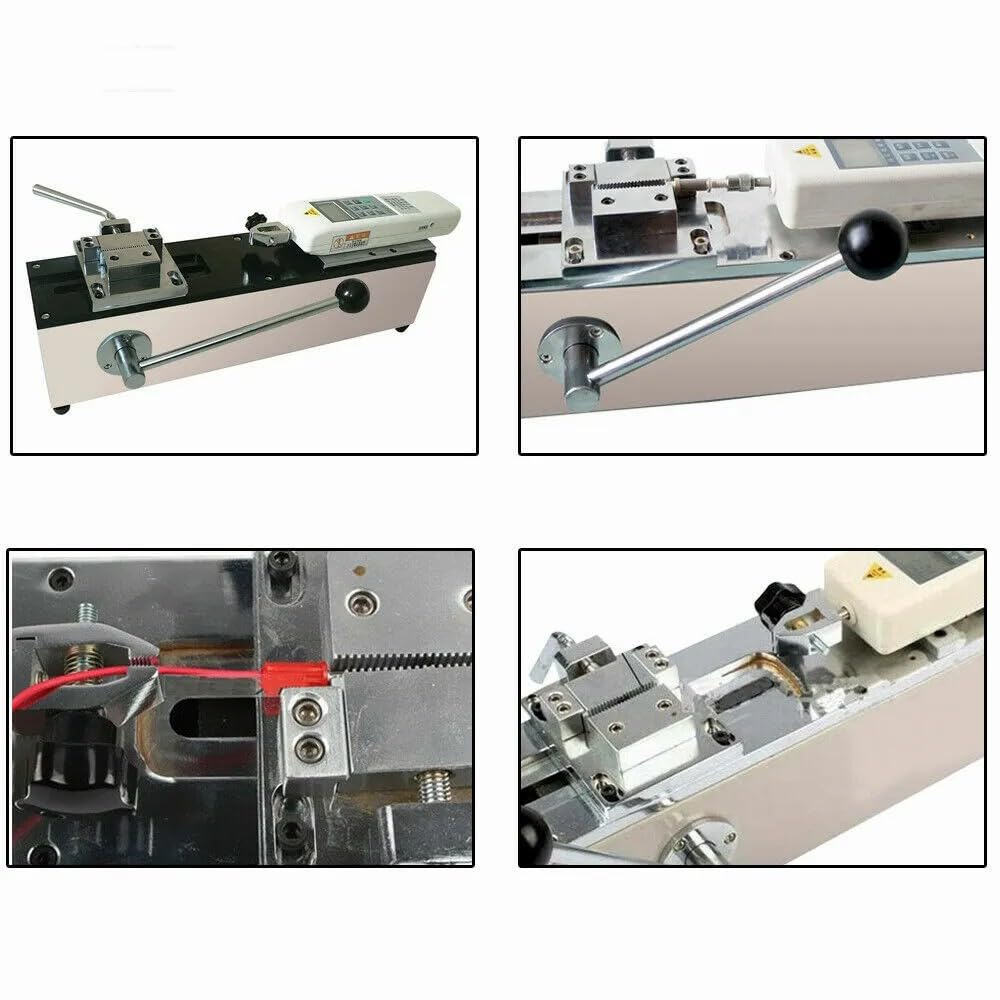

Digital Pull Force Tester HP-500 Digital Terminal pull off force tester Pull Tester Wire Harness Terminal Tensile Force Testing Measuring Instruments Thrust Meter Simple Portable 500N Package Included:1* fixture1* test machine1*HJJ-001 fixture1*F-500 digital display force gaugeThis Digital Pull Force Tester is mainly divided into two parts: test bench and digital display force gauge. The input voltage is 110V.Product parameters:Effective travel: 150MMLoad: 500NEffective area of test area: 105x 100MM Maximum 105x152MMTest bench specifications:Form: Horizontal push-pull test benchMaximum load:500NTest itinerary: 50MMSize: 450x190x180xMMWeight: 11KGPush-pull pressure gauge specifications:Model: HP-500Maximum load: 500NGraduation value: 0.1NAccuracy: ±1%Se-nsor: built-insensorFeatures1 horizontal installation2 manual operation, simple and stable operation3 The rack can be mounted on the table (table) to make the rack more stable.

⬖【NOTE】This Digital Pull Force Tester is mainly divided into two parts test bench and digital display force gauge. The input voltage is 110V.

⬖【Parameters】Effective travel 150MM Load 500N Effective area of test area 105x 100MM Maximum 105x152MM

⬖【Test bench specifications】Form Horizontal push-pull test bench Maximum load 500NTest itinerary 50MM Size 450x190x180xMM/17.7x7.4x7inch Weight 11KG/24lb

⬖【Push-pull pressure gauge specifications】Model HP-500 Maximum load 500N Graduation value 0.1N Accuracy ±1% se-nssor built-insensor

⬖【Feature】1 horizontal installation 2 manual operation, simple and stable operation 3 The rack can be mounted on the table (table) to make the rack more stable.
