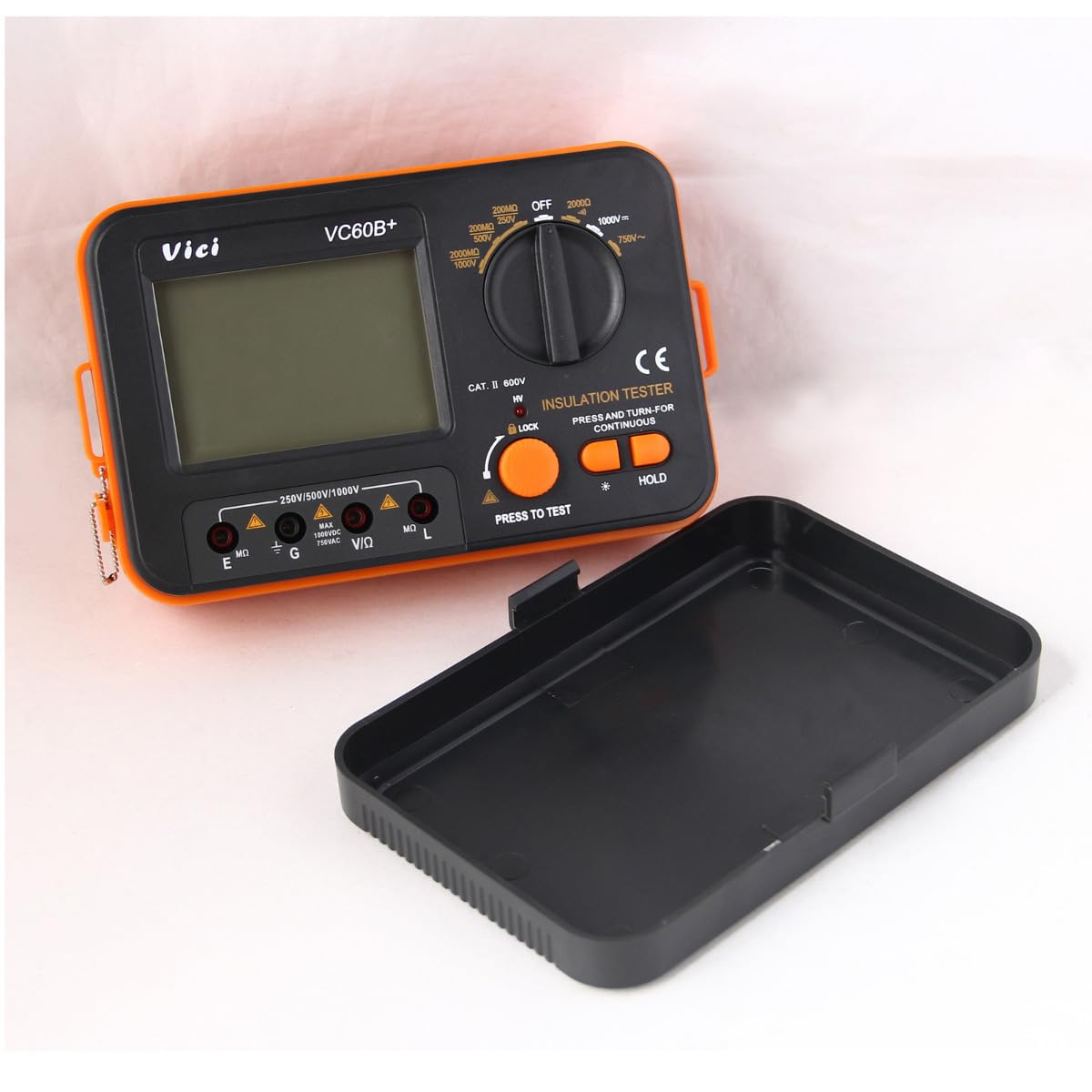

VC60B+ Insulation Resistance Tester - Digital Megohmmeter with 1000V/250V Range, Class A++ Energy Efficiency - Perfect for Electrical Maintenance, HVAC Systems & Industrial Equipment Testing

Specification: Special function: VC60B+ Low battery indication Data hold LCD backlight Approx.10Sec. Function protection Input impedance: 1M Sampling rate: 3 times/Sec. AC frequency response: 50-200Hz Operation mode: Manual range Max.display: 1999 LCD size 75 x 52mm Power source: "1.5V AA battery x6pcs, or external DC 9V power source(not included) Power consumption: Quiescent current approx.3mA Color: Orange Weight: around 660g Dimension: 176 (L) x116 (W) x62.5 (D) mm Features: 1. An accurate, reliable and easy-to-use insulation tester 2. Large LCD display, easy to read 3. Strong anti-magnetic and anti-jamming function 4. Full function protection, anti high voltage circuit design 5. Unit symbol display, easy to use 6. High voltage and short circuit input alarm 7. Product size: 18.5×12 ×6.2 cm 8. Product weight : 0.48kg We recommend this newly style of Digital Insulation Tester to you. The whole instrument is stylish and superior grade in appearance and high stable in performance, it can be operated by both hands through using a shoulder strap. It is most suitable for the needs of insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities. Package Included: 1 x Digital Insulation Tester 1 x 10A Test Leads 2 x Alligator Clip 1 x Shoulder Strap 1 x English user Manual

Double Alarm Sound and Light Alarm. Display returns to zero when a short-cut resistance occured, to

Special design to Mount battery easily. An accurate, reliable and easy-to-use insulation tester

Large LCD display, LCD backlight ON/OFF key, easy to read. Strong anti- magnetic and anti-jamming fu

Full function protection, anti high voltage circuit design. Unit symbol display, easy to use. High v

Double Power source 1.5V AA battery x6pcs, or external DC 9V power sourc(both not included)
