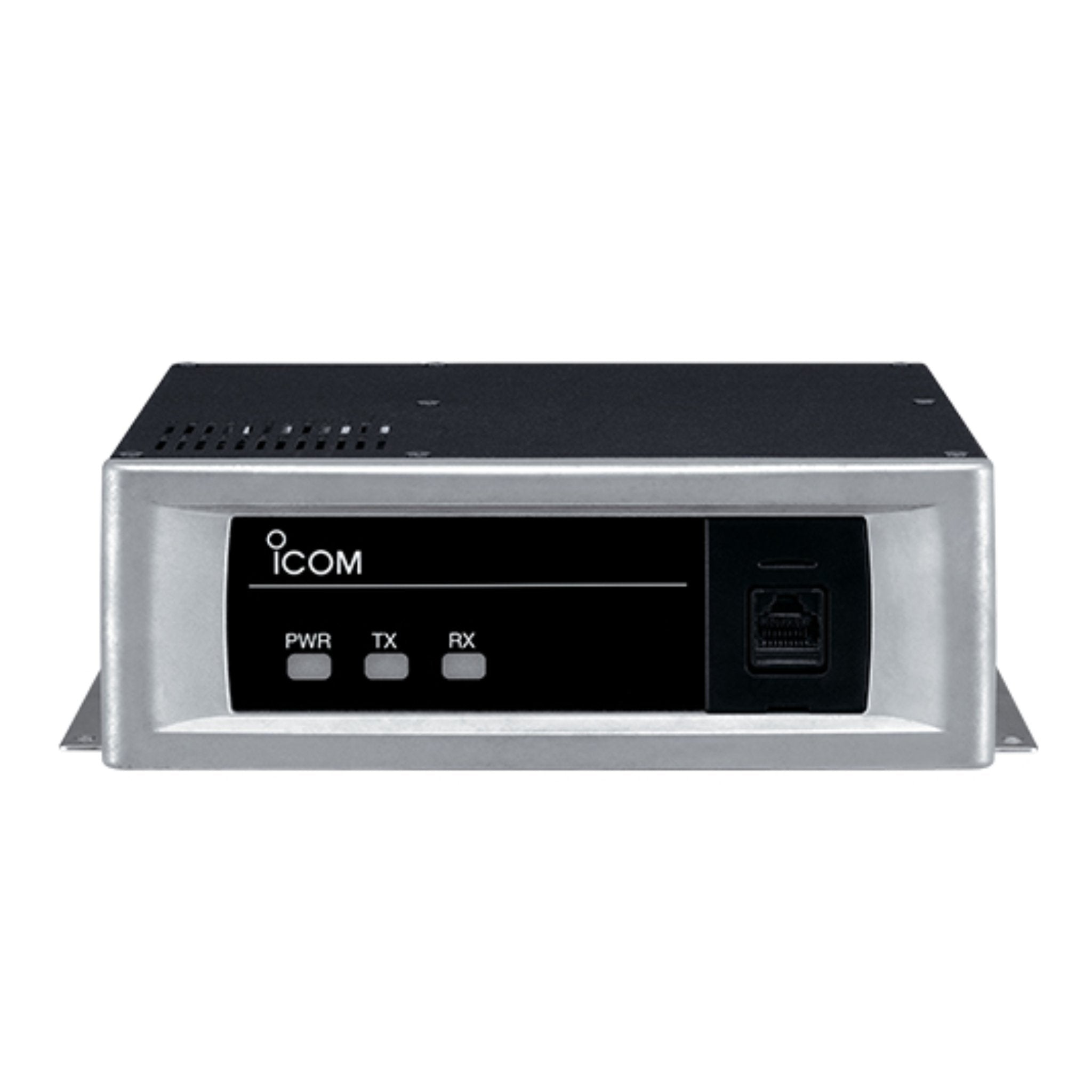

Icom URFR5300

VHF REPEATER FOR ANALOG & DIGITAL (NXDN) RADIOS

The Icom URFR5300 is a repeater for two-way radios that works in analog and digital (NXDN) mode. This channel module works in VHF (136-174MHz) and 50 watts of power output.

The UR-FR5300 is the perfect option for any VHF repeater application. Atlantic Radio recommends the UR-FR5300 for government, education, ports, marinas, boats, hunting, construction, events and more.

AVAILABLE URFR5300 REPEATER VERSIONS

• UR-FR5300 61 USA (136-174MHz analog/digital IDAS repeater channel module)

The Icom UR-FR5300 is programmable by Atlantic Radio or the end-user. For Atlantic Radio Programming Services, please contact us here: .

For programming, the URFR5300 requires an Icom OPC-2344 programming cable and CS-FR5300 (v1.21) cloning software.

The OPC-2344 cloning cable is found here: .

The customer programming software is included with the purchase of a UR-FR5300 or OPC2344.

Atlantic Radio offers its own line of duplexers that are compatible with the UR-FR5300. These duplexers include tuning and a 2-year warranty.

See more information here:

UR-FR5300 FEATURES

• VHF (136-174MHz)
• Digital (NXDN)
• Analog
• 50 Watts 25 Watts 5 Watts

• 32 Channels
• 13.6 V DC nominal
• 2.1 kg, 4.6 lb
• N Type Connections
• 2-Year Warranty

WARRANTY

*2-year manufacturer's warranty on the repeater.
