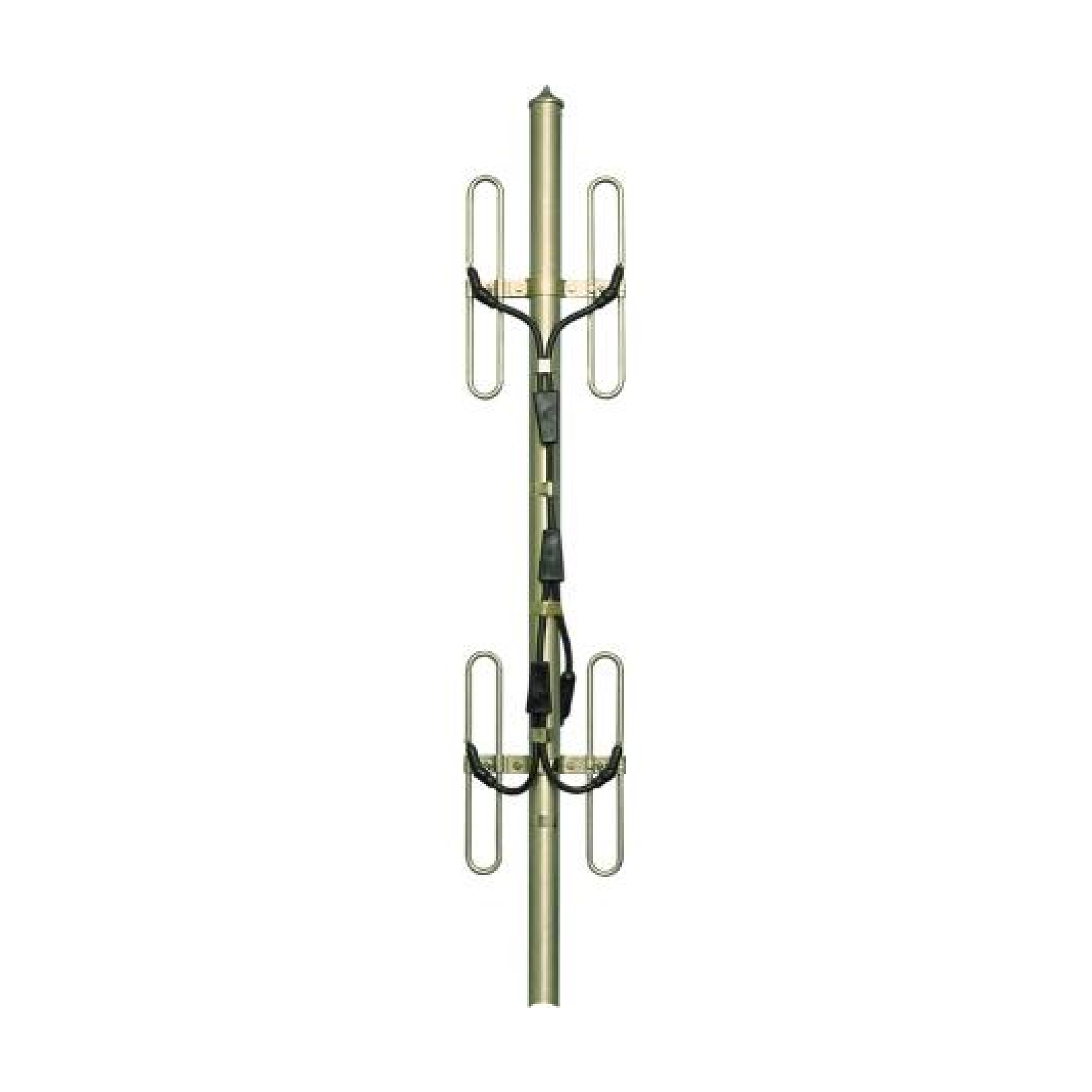

CommScope DB404-B

Omnidirectional Antenna: Powerful and Reliable UHF Coverage

The CommScope DB404-B (66392) is a rugged and high-performance omnidirectional antenna designed for demanding UHF applications. With its broad frequency response, high gain, and robust construction, this antenna is ideal for a variety of uses, including:

• Two-way radio communication systems
• Public safety networks
• Industrial environments
• And more!

Key Features:

• Wide frequency range: Operates in the 450-470 MHz frequency band.
• High gain: 3.8 dBd (5.9 dBi) gain for extended coverage.
• Omnidirectional pattern: Provides 360-degree horizontal coverage.
• Powerful performance: Handles up to 250 watts of input power.
• Durable construction: Extra heavy-duty construction for long-lasting performance in harsh environments.
• Weatherproof design: Moisture and lightning resistant for reliable operation in all conditions.
• Easy installation: Includes DB365-OS pipe mounting kit for 1.25-3.5 inch OD round members.

Technical Specifications:

• Frequency Range: 450-470 MHz
• Gain: 3.8 dBd (5.9 dBi)
• Connector: N Male with flexible pigtail
• Antenna Pattern: Omnidirectional
• Horizontal Beamwidth: 360 degrees
• Vertical Beamwidth: 27 degrees
• Maximum Input Power: 250 watts
• Maximum VSWR: 1.5:1
• Polarization: Vertical
• Maximum Rated Wind Velocity: 100 MPH
• Weight: 14 lbs
• Length: 60 in

Warranty:

• 1-year manufacturer's warranty

Contact us today to learn more about the CommScope DB404-B antenna and how it can enhance your communication system!
