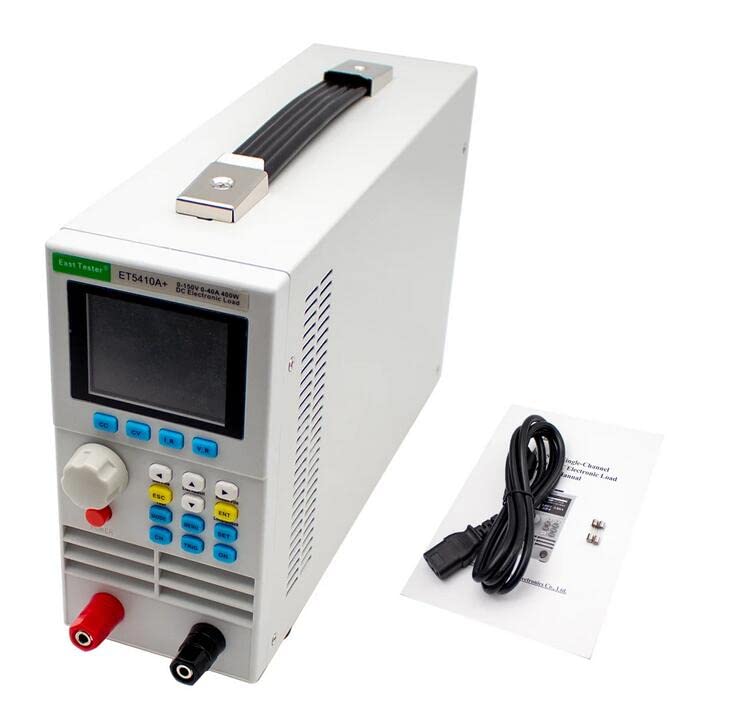

ET5410A+ Programmable 400W DC Electronic Load Battery Tester - 0-150V 0-40A with RS485 Interface for Battery Capacity Testing, Internal Resistance Measurement & Power Supply Evaluation - Perfect for Lab Testing, R&D, and Electronics Repair

ET5410A+ Programmable 400W DC Electronic Load Battery Load Tester DC Tester Battery Internal Resistance Tester 0-150V 0-40A Description: Programmable DC electronic load provides 1mV/10mV, 1mA/10mA high resolution and precision with superior performance. It is equipped with 12 common modes and complete test functions, which can be widely used in charger, switching power supply, linear power supply, battery and other production line testing Feature: 1. CC, CV, CR, CP and CC+CV, CR+CV several basic measurement modes 2. Battery test/LED test/Dynamic output performance of the power supply/Test the continuity of power output within a certain range/Simulate a variety of loading status changes/Simulate load short circuit/Support external trigger input (DB9 interface is required) 3. 2.8-inch TFT LCD screen with rich display contents 4. With visual interface display system,simple and convenient 5. Maintain data storage in case of power failure,With input polarity reverse prompt 6. With PS2 interface, and supports external keyboard for data value setting; Multiple safety protection 7. It provides overcurrent, overvoltage, overpower, over temperature protection. The overvoltage and overcurrent parameters can be set flexibly, so as to effectively protect the load 8. It has intelligent fan speed control function, which can effectively reduce the fan noise when it is working Package included: 1 x ET5410A+ DC Load 1 x Power Supply 2 x Fuse 1 x English Manual
