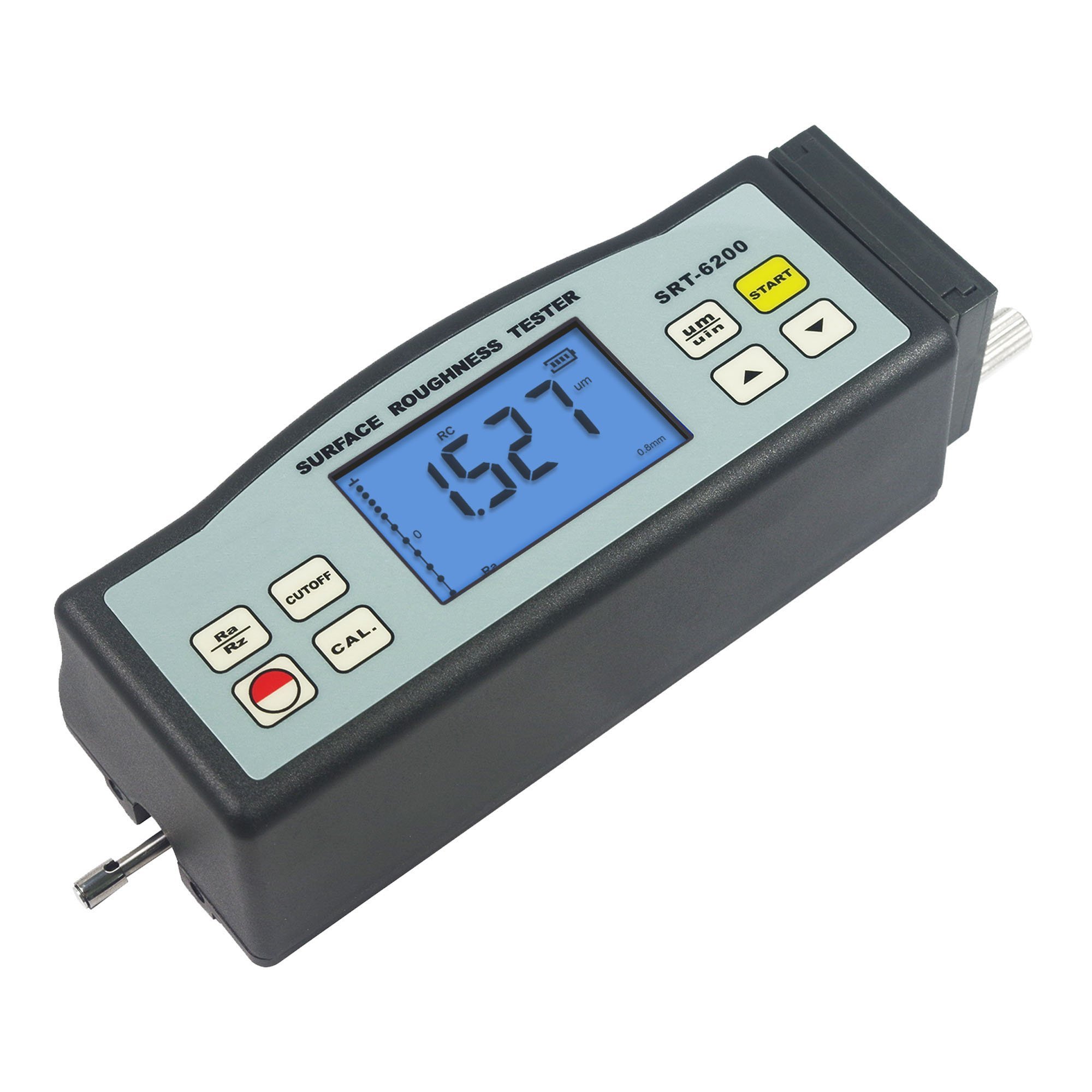

SRT-6200 Digital Surface Roughness Tester | High-Precision Profile Gauge & Profilometer | Measures Ra, Rz Parameters | Ideal for Metal, Plastic & Automotive Surface Testing

r> Applications: Widely used in production site to measure surface roughness of various machinery-processed parts. Specifications: Standards:GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1 Parameters:Ra,Rz Measuring Range: Ra:0.05~10.00um/1.000~400.0uinch Rz:0.020~100.0um /0.780~4000uinch Accuracy:≤±10% Fluctuation of Display Value:≤6% Resolution:0.001/0.01/0.1 Sensor: Radius of Probe Pin:10um Material of Probe Pin:Diamond Measurement Force of Probe:16mN(1.6gf) Probe Angle:90º Vertical Radius of Guiding Head:48 mm Maximum Driving Stroke:17.5mm/0.7inch Cutoff length(l):0.25mm,0.8mm,2.5mm Driving Speed: Sampling: When Length=0.25mm,Vt=0.135 mm/s When Length=0.8mm,Vt=0.5mm/s When Length=2.5mm,Vt=1mm/s Returning:Vt=1mm/s Profile Digital Filter:RC,PC-RC,GAUSS,D-P Evaluation Length:1~5L Optional Operating Conditions:Temp:0~50ºC; Humidity:<80%RH Power Supply:Built -in Rechargeable Li-ion Battery Dimensions:140x52x48 mm Weight:420g Package includes: Main Unit Standard Sample Plate SSP-100 Standard Sensor SSP-100 Small Screwdriver Power Adapter Carrying Case Operation Manual Your requirements could be customized. Please contact us if you need further assistance.

Be compatible with four standards of ISO, DIN, ANSI and JIS;

Multiple parameter measurement Ra, Rz; Highly sophisticated inductance sensor.

Built-in lithium ion rechargeable battery and control circuit with high capacity.

Manual or automatic shut down; Metric /Imperial Conversion.

Small in size, light in weight and easy to use.
